With the .NET 5 Preview 8 release a few weeks back, things are basically “feature complete,” except for the inevitable bug fixes. With the latest preview, we’re seeing a ton of great Blazor features. I was excited to see CSS isolation—also known as scoped CSS.

This post will discuss how to use CSS isolation with the latest preview bits, a feature adored by those in the Angular and Vue space, and for good reason—once you have it, you’ll soon wonder how you ever went without it. Also, the official docs for CSS isolation aren’t available until the RC1 release, so hopefully this post will lend a hand until then.

Heads up! While .NET 5 is “feature complete”, we are still working with preview bits so some of this content might change. As always, I will do my best to update it as things evolve—but if not, here’s your warning. 🤞

Prerequisites

Before we get started, make sure you’ve installed the latest preview bits. To do this, install the latest .NET 5 SDK.

Also, you’ll need to create a Blazor app (either Server or WebAssembly is fine) using the tooling of your choice. For me, the quickest way to get started is with the .NET CLI:

dotnet new blazorwasm -o CssIsolationApp
cd CssIsolationApp
dotnet run

Of course, you can use Visual Studio tooling as well—do whatever works for you!

Once you verify the app is up and running, you’ll be ready to go.

The problem

The beauty of Blazor is in its component model. With components, you get a self-contained “chunk” of your UI that allows you to share and reuse them across your projects (not to mention with shared class libraries). Until Blazor CSS isolation came along, using CSS with your components went against a lot of that, which can lead to a frustrating experience. Let’s walk through an example to explain why.

In the generated sample Blazor app, we have three pages: Home, Counter, and Fetch data. With even a basic knowledge of CSS concepts, we know that if we do something like this in wwwroot/css/app.css, the site’s global CSS…

h1 {
    color: brown;
    font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
}

…we see that this change applies to every h1 on every page in our project. So, as a result, if we want a different heading style on every page—like a crazy person!—we need to differentiate them somehow:

.hello-world-heading {
    color: brown;
    font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
}

.counter-heading {
    color: aquamarine;
    font-family: 'Times New Roman', Times, serif;
}

.fetch-data-heading {
    color: blueviolet;
    font: 'Comic Sans';
}

Not only that, I need to go into each of my pages and apply my CSS classes to it.

For Pages/Index.razor:

<h1 class="hello-world-heading">Hello, world!</h1>

For Pages/Counter.razor:

<h1 class="counter-heading">Counter</h1>

For Pages/FetchData.razor:

<h1 class="fetch-data-heading">Weather forecast</h1>

After you do that, all the styles should be applied—and, as an added bonus, you’ve stopped taking me seriously since I told you to use Comic Sans.

Even using a basic example, you’re already seeing the pain points. Because you’re styling defensively to avoid collisions between components and other libraries, you’re left with a bloated file with no way to track them to your components. You’re essentially working without namespaces. Can you imagine? We would never do this in C#, but this is what we’re doing with our CSS.

In addition to a terrible developer experience, you’re also adding bloat to your application by loading styles when they aren’t referenced.

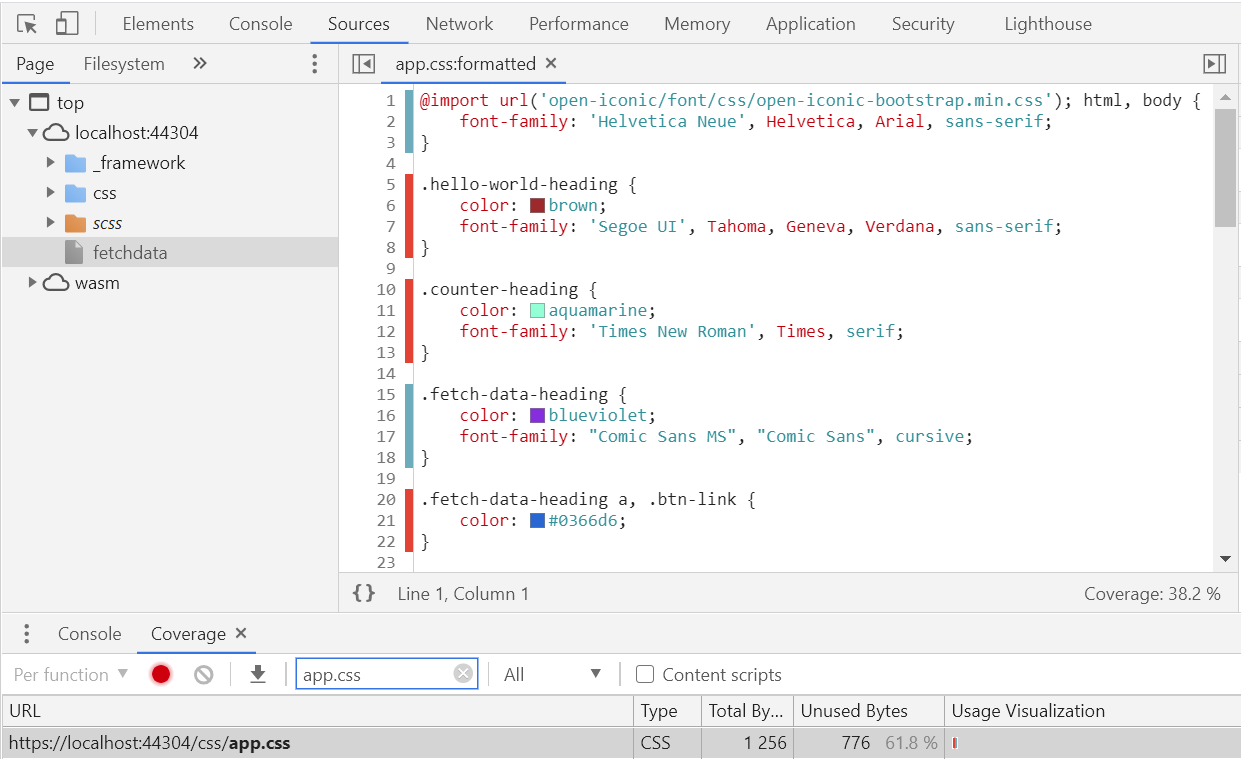

In your browser’s developer tools, you can verify this quite easily—I’m using Show Coverage from Chrome Dev Tools. As you can see from the screenshot below, I’m not even using 40% of my styles. You can see the heading styles from the other components are being loaded, even though we know they aren’t used.

A lot of unused styles

There are ways to get around this by bringing in external libraries and tools from both inside and outside of the Blazor ecosystem. If it works for you, great—but I ask: isn’t the promise of one toolchain a big reason why you’re using Blazor?

With a knowledge of our pain points, let’s add CSS isolation to our sample application.

Use CSS isolation with our components

It’s quite easy to bind your CSS to your component. To do this, inside of your Pages directory (and not with the global CSS file), add new files with the format MyComponent.razor.css. So, add these three files to the project:

  • Index.razor.css
  • Counter.razor.css
  • FetchData.razor.css

Once you do that, cut and paste the styles you created for the individual headings into the individual files. If you run your project again, you’ll see that everything still works. The difference here is that everything is scoped to the single component—and you don’t even need to add a reference!

If you happen to run the coverage test again, you’ll see that the styles for your other components aren’t being loaded with your existing component.

Without worrying about conflicting with other components or libraries, we can change our CSS styles to simple h1’s. For example, in our Index component, we can change this style:

.hello-world-heading {
    color: brown;
    font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
}

To a simple h1:

h1 {
    color: brown;
    font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
}

I’m incredibly happy with the simplicity of this solution. Many folks have asked about using @css blocks in components, but it involved integrating a CSS parser into the Razor compiler—which appears to be quite expensive.

How does this magic work?

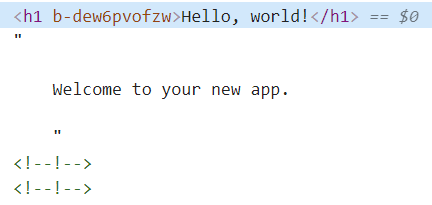

For this to work, Blazor appends a special attribute to your CSS classes, which binds your classes to the specific component.

A lot of unused styles

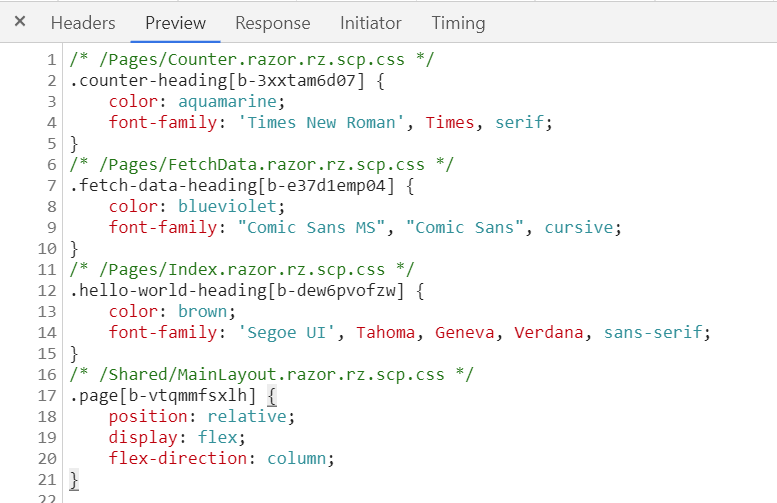

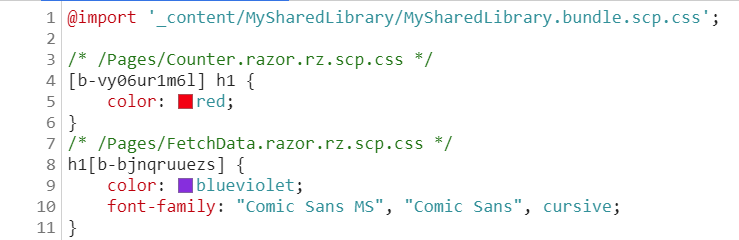

If you’re curious, you can head over to the Network panel of your favorite browser’s developer tools. You’ll see that Blazor loads in a scoped.styles.css file. Here, you’ll see the styles for all our components, each referenced by that unique ID—as a bonus, it’s super helpful to have the component’s name commented for us.

A lot of unused styles

This scoped.styles.css file is the result of bundling all your isolated CSS files into a single output. Don’t take my word for it: if you view the <head> on your page, you’ll see the reference that’s generated for you.

<link href="_framework/scoped.styles.css" rel="stylesheet">

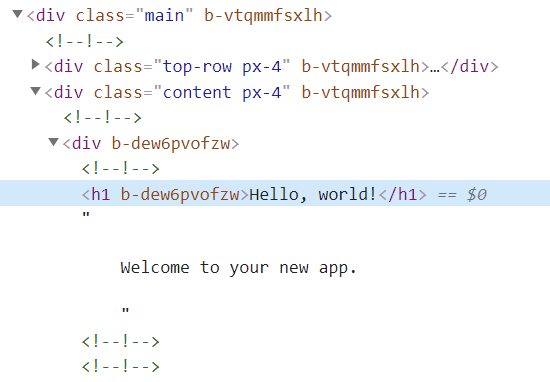

Armed with this knowledge, if we take a larger view of the DOM it’ll make a lot more sense. The new h1 class refers to our Index component (b-dew6pvofzw), and the other styles are brought in from the Shared/MainLayout component (b-vtqmmfsxlh).

A lot of unused styles

This pattern has worked well with Vue and there was no sense in reinventing the wheel.

Reminder: CSS isolation is a build-time step

To support isolation, Blazor rewrites all the CSS selectors during the build process. This makes prerendering a snap, since there’s no reliance on existing .NET or JavaScript code. On the other side of the coin, this means you’ll need to recompile to see any new changes—if you’re used to saving a CSS change and seeing your changes immediately, it’s a drag.

How to work with child components

Call me a mind reader, but you’re probably wondering how this works with child components. Thanks so much for asking. There’s only one way to find out.

In your Pages directory, add a new component and call it MyChild.razor and add the following:

@page "/child"

<h1>I'm a child component it's true</h1>

<p>No, seriously.</p>

Finally, drop the (child) component in our Index.razor (parent) component. Your Index.razor component will look like this now:

@page "/"

<h1>Hello, world!</h1>

Welcome to your new app.

<MyChild />

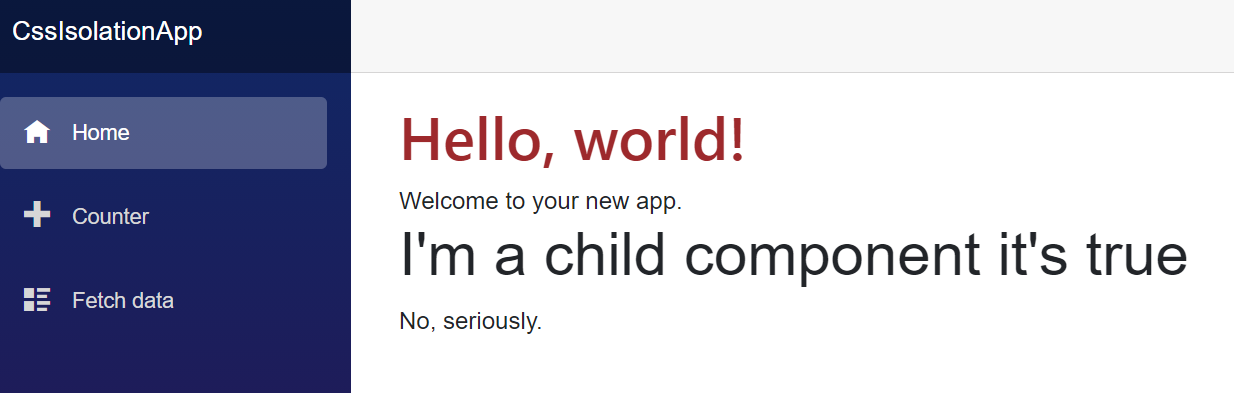

Fire up your app and see what happens. We notice that, by default, scoped styles do not apply to child components. The styles in your *.razor.css files only get applied to the rendered output of that specific component.

A lot of unused styles

Don’t worry, though: we can cascade styles down to child components without the need for a new component-specific CSS file. We’ll do this with a ::deep combinator in our CSS. Change the contents of Index.razor.css to the following:

::deep h1 {
    color: brown;
    font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
}

Fire up your app and see that … it doesn’t work. Because of how the markup is structured, Blazor can’t determine the relationship between the parent component and the child component. Surround the markup with a <div> tag, and it’ll work:

@page "/"

<div>
    <h1>Hello, world!</h1>

    Welcome to your new app.

    <MyChild />
</div>

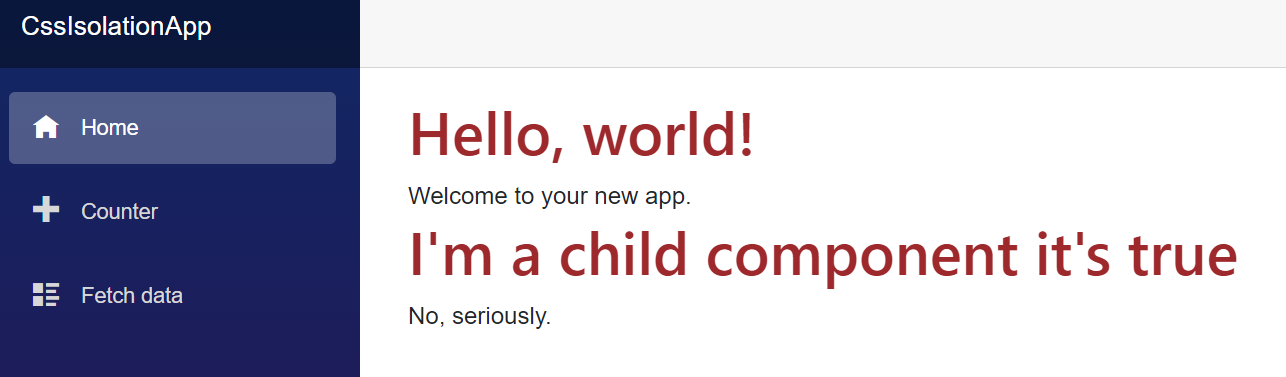

Now, it works great. We’re able to have our child components inherit styles from our parent component.

A lot of unused styles

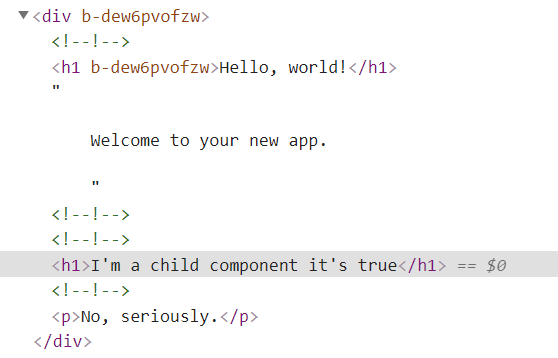

If we look at our attribute:

A lot of unused styles

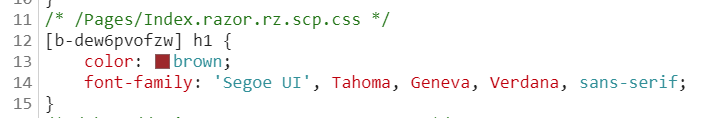

Blazor identifies the child style as “belonging” to the parent component in scoped.styles.css.

A lot of unused styles

Integrate with your favorite preprocessors

You may be leveraging your own CSS preprocessor. A popular preprocessor, like SASS, makes the writing of CSS more enjoyable with support for things that CSS doesn’t provide out of the box—like variables, nesting, modules, mixins, and inheritance.

In an effort to make things more generalized and extensible (and, ahem, not to mention shipping this on time), the Blazor CSS isolation feature does not directly offer CSS preprocessor support—but it doesn’t need to. For whatever tool you’re using, you just need to ensure that the preprocessor compiles to CSS to your MyComponent.razor.css file before the Blazor build step occurs. This allows you to be flexible: you can continue using existing tools like Webpack or one of the several .NET tools available, like Delegate.SassBuilder. Let’s do a quick demo using Delegate.SassBuilder.

First, go out and get SassBuilder in one of the many ways available to you (NuGet Package Manager, .NET CLI, Package Manager Console). For me, I’ll just add it to my project file and let the restore process take over. Add the reference to your existing <ItemGroup> packages.

<ItemGroup>
    <PackageReference Include="Delegate.SassBuilder" Version="1.4.0" />
</ItemGroup>

In your Pages directory, add a new SASS file. Let’s call it Index.razor.scss. It’ll be placed alongside the CSS file. You don’t need to touch the CSS file—our changes will be compiled to this file.

In Index.razor.scss, have fun with some variables (we changed our color from brown to red to validate things are working):

$color: red;
$font: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;

h1 {
    color: $color;
    font-family: $font;
}

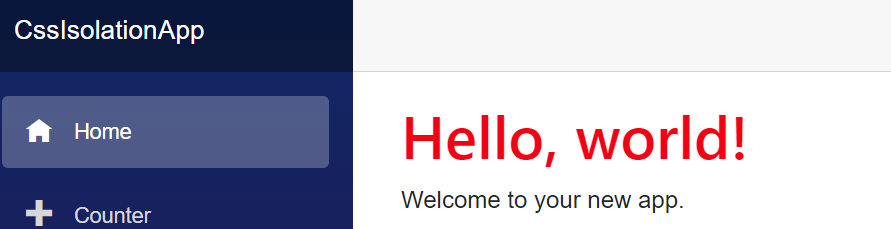

During the build, the .scss file is compiled to Index.razor.css and we see that our changes are in place.

A lot of unused styles

Disable automatic bundling

If you have a process that works for you, fantastic. If you want to opt-out of how Blazor publishes and loads scoped files at runtime, you can disable it by using an MSBuild property. As mentioned in the GitHub issue, this means it’s your responsibility to grab the scoped CSS files from the obj directory and do the required steps to publish and load them during runtime.

If you’re good with that, add the DisableScopedCssBundling MSBuild property to your project file.

<PropertyGroup>
  <DisableScopedCssBundling>true</DisableScopedCssBundling>
</PropertyGroup>

Wrap up

In this post, we reviewed the new CSS isolation feature for Blazor. We discussed its benefits, the problems it solves, how to use it, and how you can pass styles to child components. We also talked about how to use CSS isolation with preprocessors and how to disable automatic bundling.

This was a fun post to write—there isn’t a lot of content out there, so it was a lot of trial and error. While that’s always fun, it also means I could be missing some details. Let me know if you come across anything, and happy hacking!

References

When writing this post, a lot of the content came from the GitHub issue as well as Steve Sanderson’s demo from a recent ASP.NET weekly standup.
