Like any good adventure, this one started on Twitter.

My friend (and friend of the newsletter) Shahed Chowdhuri took his lunch break to create a simple chat bot using the Microsoft Bot Framework. A user enters something, and it responds with I am Groot.

If you aren’t familiar with Groot, he is a tree-like being from the Marvel universe who only responds with I am Groot - leaving much up to interpretation. Here’s an idea: how about we change how Groot responds based on the sentiment of what a user types? For example, if a user types something happy, or sad, can we respond in kind? Luckily, we can have some fun with Azure’s Text Analytics Service to analyze sentiments.

From here on out, however, we will address him at Gruut*. Why?

*please don’t sue us

In this post, we’ll do the following:

  • Create a chatbot using the Microsoft Bot Framework
  • Integrate the Azure Text Analytics service to detect a user’s sentiment
  • Learn how to debug bots
  • Safely store our credentials to access our Azure services

Many thanks to Shahed for the inspiration for this post.

This post covers the following topics.

Before you get started

While there are multiple ways to develop with the Bot Framework, we’ll use Visual Studio tooling. So before you get started with this tutorial, you’ll need to install Bot Framework templates and the Bot Framework Emulator.

Install Bot Framework SDK templates

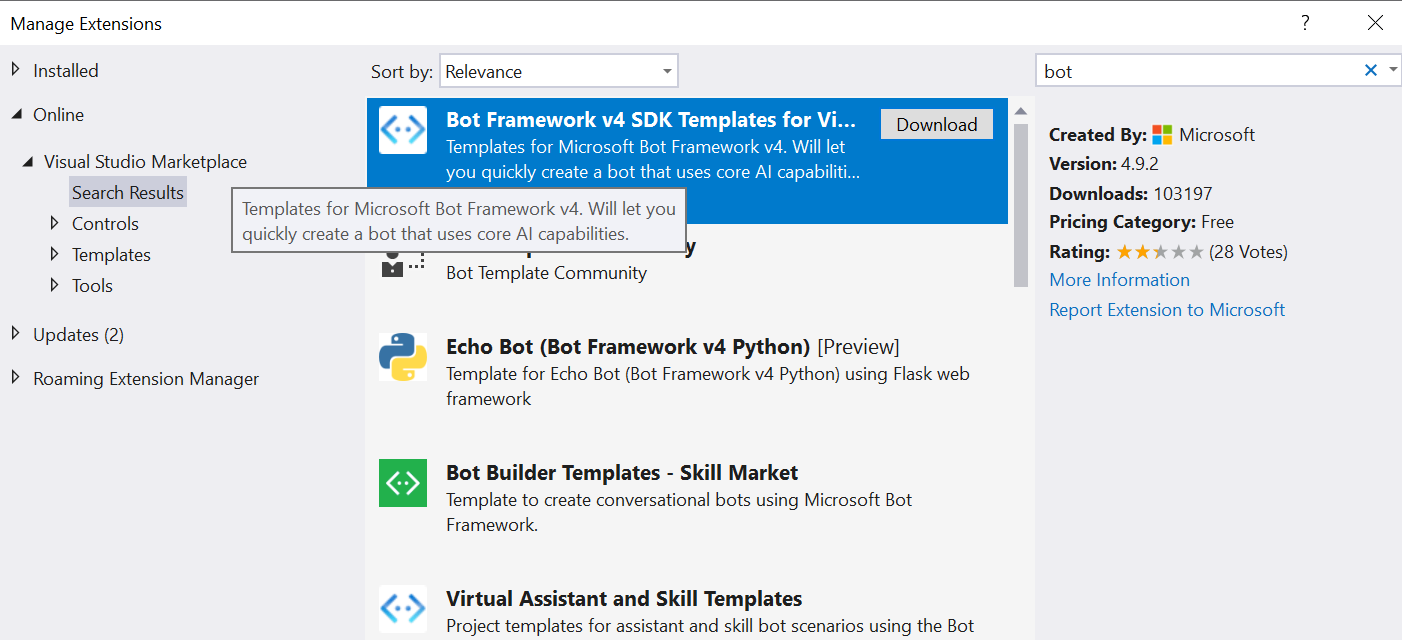

To make project generation easier, you’ll need to install the Bot Framework v4 SDK Templates for Visual Studio. In your Visual Studio, go to Extensions > Manage Extensions, and search for bot. It should be the first result.

bot framework extension

Alternatively, you can find the direct download at this location.

Install Bot Framework Emulator

To test and debug your bots (either locally or remotely), you’ll need to install the Bot Framework Emulator. Head on over to the GitHub releases to install the emulator for your specific environment.

Create a Text Analytics Service

Now, we can head out to Azure to create a Text Analytics instance. Assuming you have an Azure account (if not, you can go to the Azure site to sign up and get free credits), head on over to the Azure Portal at portal.azure.com.

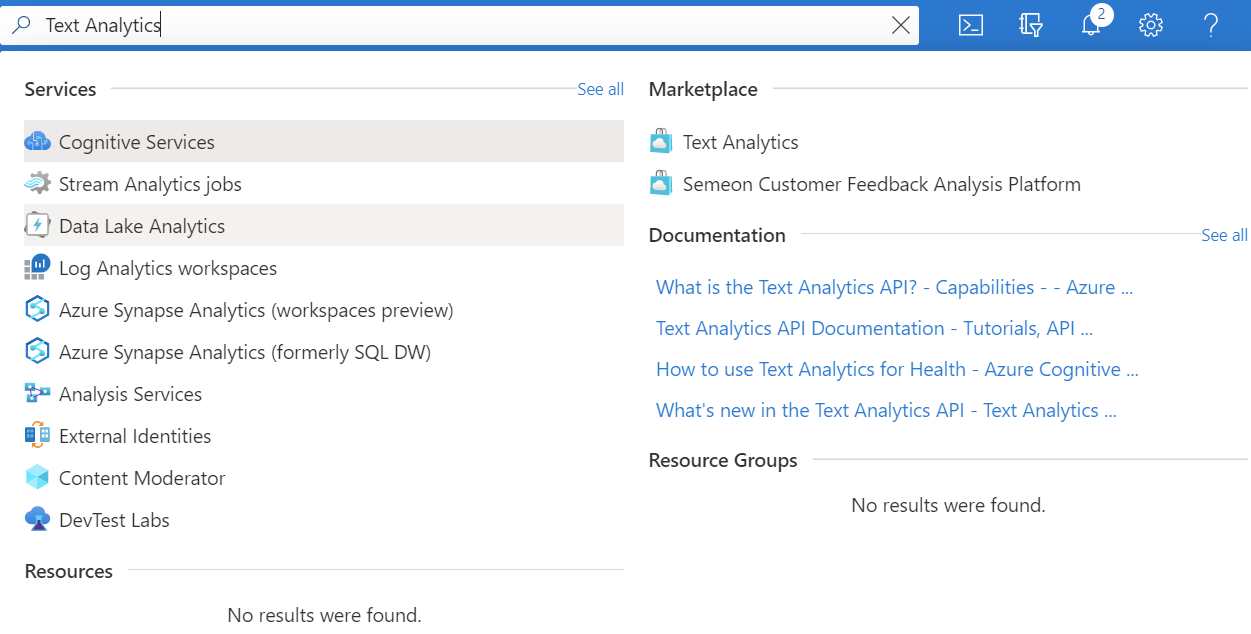

In the search box, enter Text Analytics, and select Text Analytics from the Marketplace section.

bot framework extension

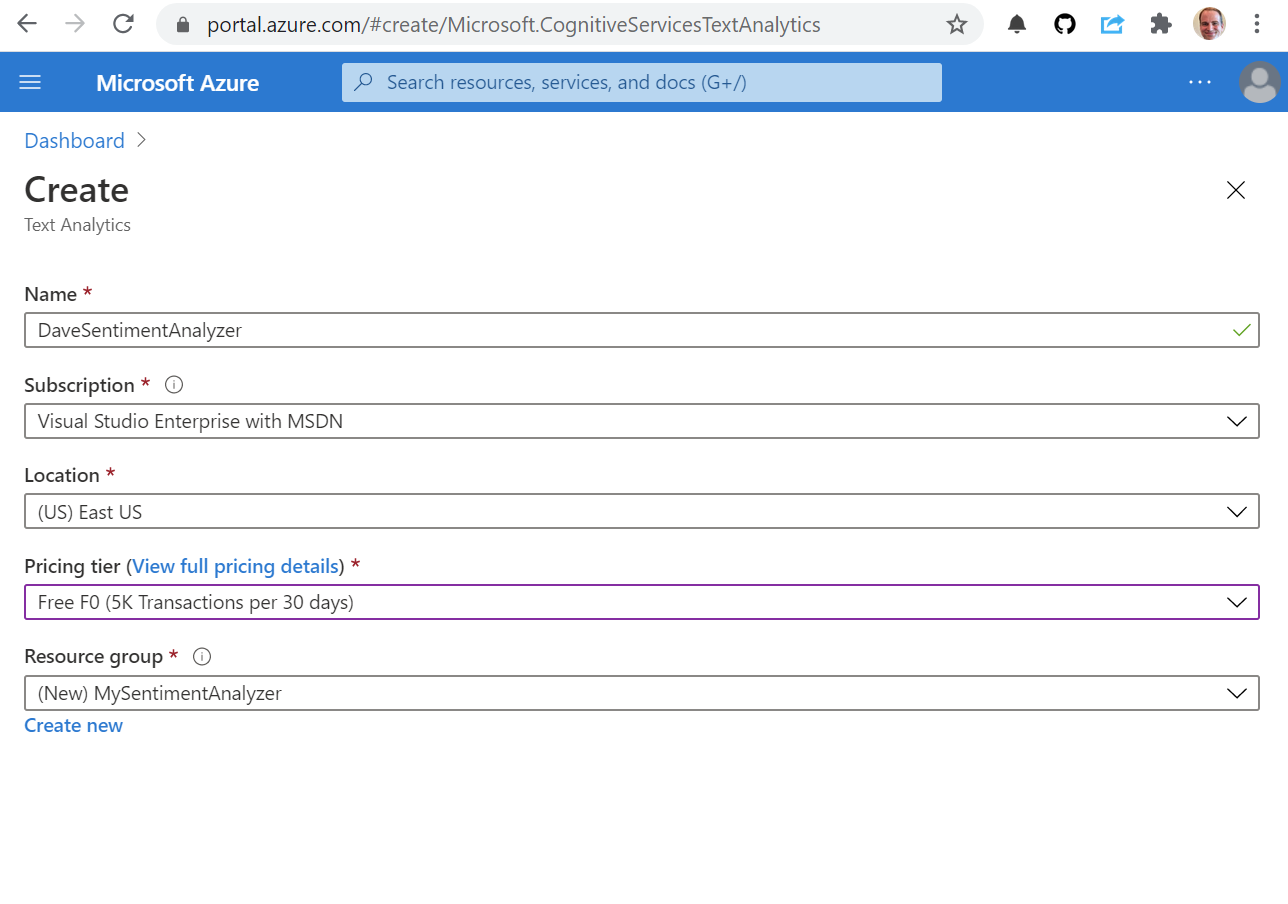

Enter a name, select your subscription, a location, pricing tier (the Free tier should be fine for this tutorial), and a resource group, then click Create.

bot framework extension

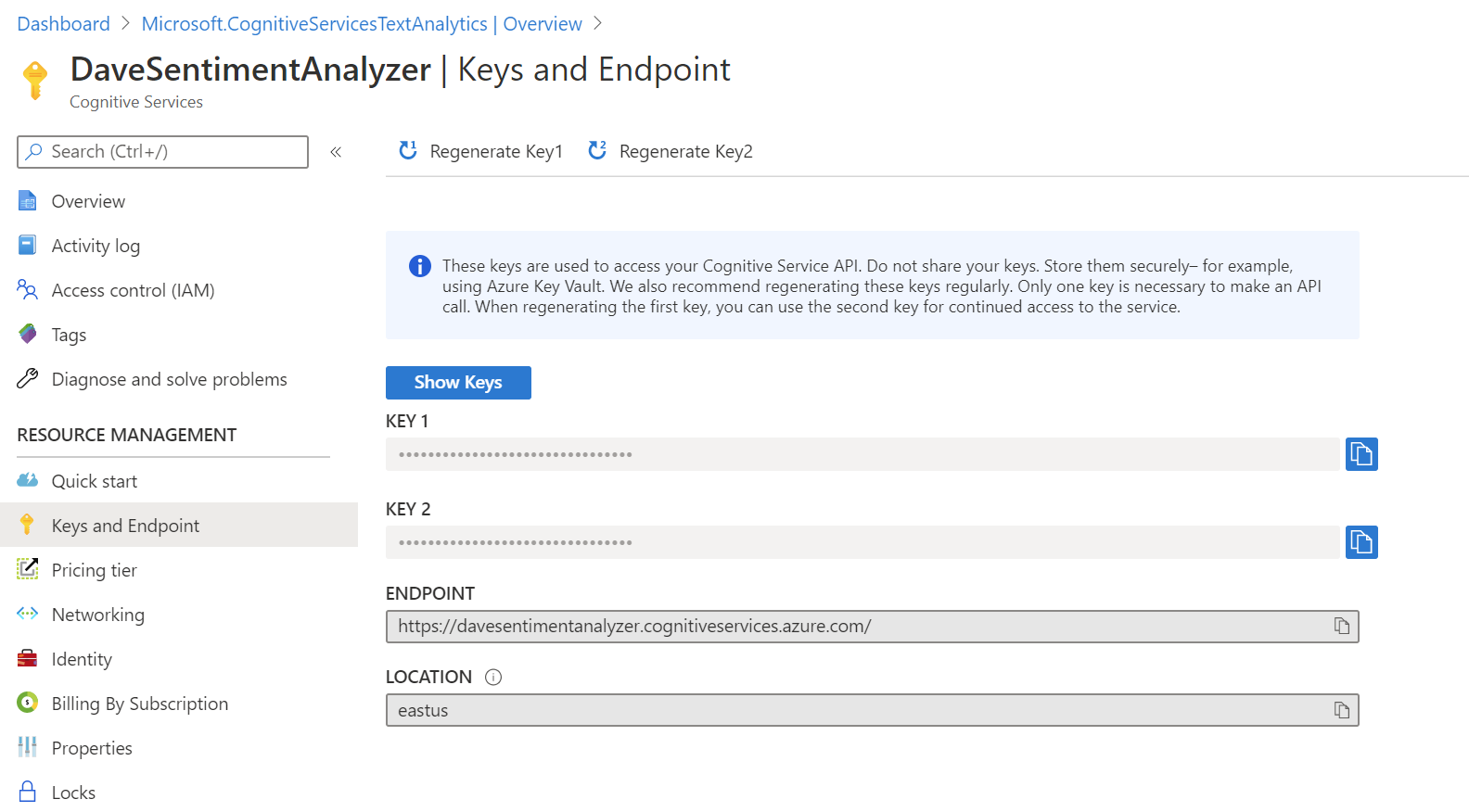

After the deployment completes, click Go to resource. Then, click Keys and Endpoint. You’ll need to grab a key (Key 1 or Key 2 is fine) and the endpoint for your application. Copy these values somewhere, like a text file.

echo bot template

Excellent! Let’s move on to Visual Studio to create our chatbot.

Create your bot project

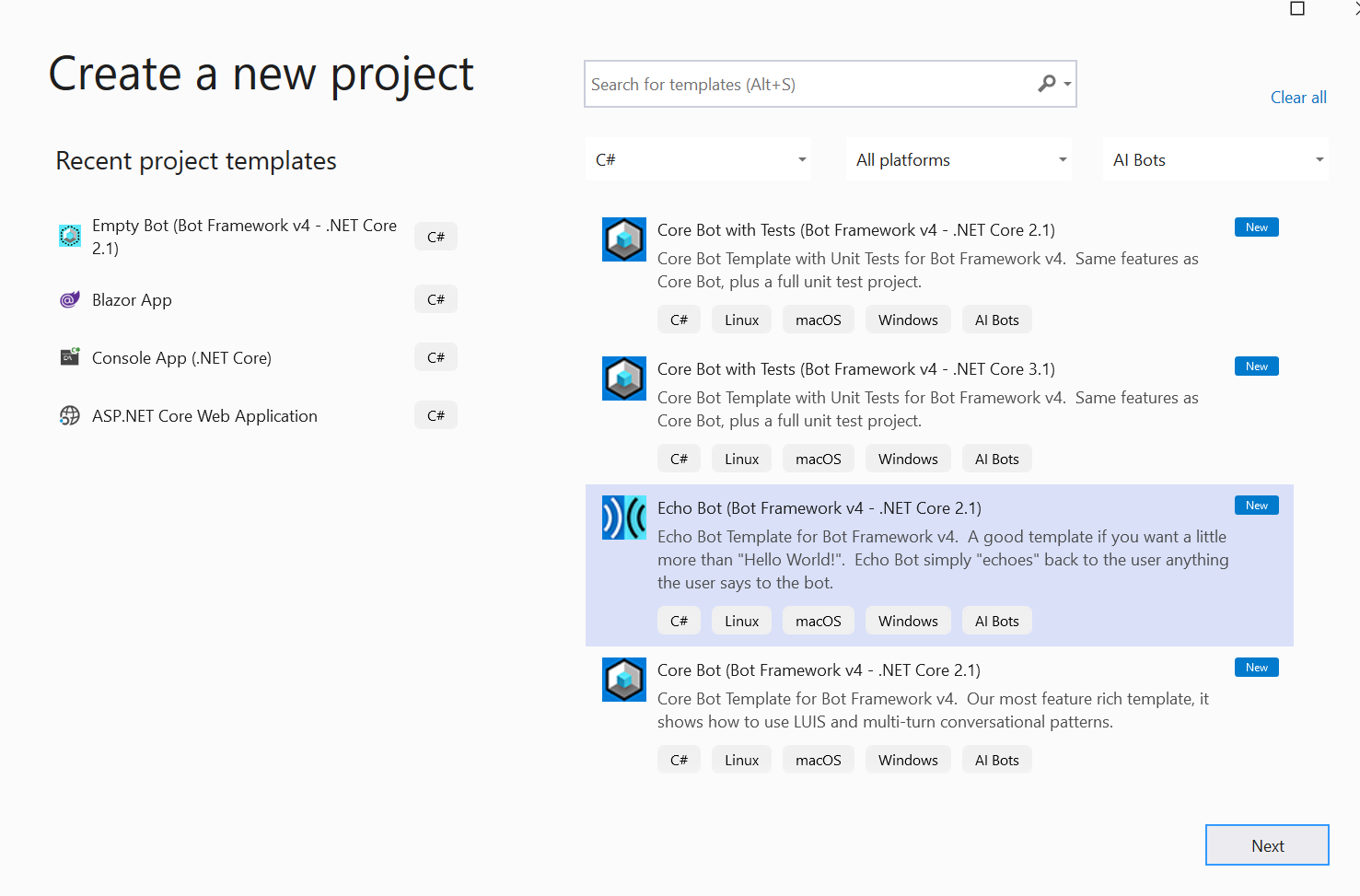

After you install the Bot Framework v4 Templates for Visual Studio, create a new project as you typically would.

From the Project Types drop-down, select AI Bots and select the Echo Bot template. This will give us the basic functionality we need (since Gruut does a lot of echoing).

echo bot template

Introducing your EchoBot

When your project loads, navigate over to EchoBot.cs (in your Bots folder). You’ll see the EchoBot implements the Microsoft.Bot.Builder.ActivityHandler interface, and has two methods implemented for you.

  • OnMessageActivityAsync - this is where you’ll include code specific to your conversational logic. We’ll override this and do our work here.
  • OnMembersAddedAsync - this is where you’ll provide logic when new members join the conversations (like welcome logic). You can remove this method if you wish, since we aren’t using it.

We’ll be working with the Azure.AI.TextAnalytics package. You can install it now from the NuGet Package Manager or get Visual Studio assistance to install when you get errors. Your choice. 😎

First pass: getting it working

Now, still in EchoBot.cs, find the Text Analytics key and endpoint you copied when you created your instance in Azure. At the beginning of your class, declare a credentials and endpoint static class variable:

private static readonly AzureKeyCredential credentials = new AzureKeyCredential("<your key>");
private static readonly Uri endpoint = new Uri("<your endpoint>");

Hard-coding your credentials is reckless. Don’t do this for any apps that have actual users. We will fix this soon—we want to get this working first.

Moving on to our OnMessageActivityAsync method, we’ll first get the text the user entered. We get this by using our turnContext that is passed in, that’s an ITurnContext<MessageActivity>. The Activity.Text gets the contents of the sent message as a string.

string userInput = turnContext.Activity.Text;

Now, we’re ready to work with our Text Analytics service. We will first get an instance of the Text Analytics client, passing in our credentials:

var client = new TextAnalyticsClient(endpoint, credentials);

Then, we want to call the client’s AnalyzeSentiment method. When we call this, we get a TextAnalytics.DocumentSentiment back, with tons of data to work with.

We can work with confidence scores, a sentiment for each sentence, or any warnings that occur. For our purposes, we want to work with the Sentiment property. This property has a TextSentiment, an enum with valid values as Mixed, Negative, Neutral, or Positive. This should be fine for our purposes. Then, we can make a decision on what to send back to the user.

var sentiment = client.AnalyzeSentiment(userInput).Value.Sentiment;

Now, we can write a local function in C# (thanks for the inspiration, David Pine) that leverages switch expressions. We send back specific responses for Positive, Negative, and Neutral results. If we get anything else back, we have a fallback.

static string GetReplyText(TextSentiment sentiment) => sentiment switch
{
    TextSentiment.Positive => "I am Gruut.",
    TextSentiment.Negative => "I AM GRUUUUUTTT!!",
    TextSentiment.Neutral => "I am Gruut?",
    _ => "I. AM. GRUUUUUT"
};

Now, all that’s left is to invoke the GetReplyText function and call SendActivityAsync to send the message back to the user.

var replyText = GetReplyText(sentiment);
await turnContext.SendActivityAsync(MessageFactory.Text(replyText, replyText), cancellationToken);

That should do it! For your reference, here’s the entire class.

using System;
using System.Collections.Generic;
using System.Threading;
using System.Threading.Tasks;
using Azure;
using Azure.AI.TextAnalytics;
using Microsoft.Bot.Builder;
using Microsoft.Bot.Schema;

namespace GruutChatbot.Bots
{
    public class EchoBot : ActivityHandler
    {
        private static readonly AzureKeyCredential credentials = new AzureKeyCredential("<my key>");
        private static readonly Uri endpoint = new Uri("<my endpoint>");

        protected override async Task OnMessageActivityAsync(ITurnContext<IMessageActivity> turnContext, CancellationToken cancellationToken)
        {
            var client = new TextAnalyticsClient(endpoint, credentials);
            string userInput = turnContext.Activity.Text;
            var sentiment = client.AnalyzeSentiment(userInput).Value.Sentiment;

            static string GetReplyText(TextSentiment sentiment) => sentiment switch
            {
                TextSentiment.Positive => "I am Gruut.",
                TextSentiment.Negative => "I AM GRUUUUUTTT!!",
                TextSentiment.Neutral => "I am Gruut?",
                _ => "I. AM. GRUUUUUT"
            };

            var replyText = GetReplyText(sentiment);
            await turnContext.SendActivityAsync(MessageFactory.Text(replyText, replyText), cancellationToken);
        }
    }
}

Let’s try it out

Let’s see how this works. Before we debug this, set a breakpoint at the declaration of GetReplyText. Now, start debugging your app in Visual Studio. A browser will launch—take note of the port number after localhost (https://localhost:xxxx).

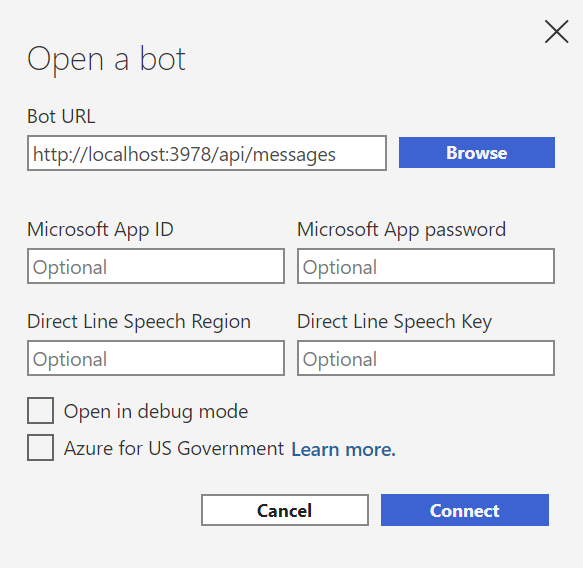

Finally, we can now work with the Bot Framework Emulator. At the initial screen, click Open Bot. For your bot URL, enter http://localhost:xxxx/api/messages and replace xxxx with your port number you are using. Then, click Connect.

echo bot template

You are connected! Enter some text to try it out and hit your breakpoint. I’ll type I’m really mad.

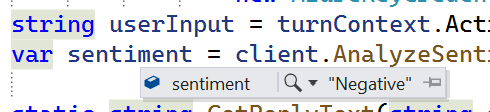

With my breakpoint hit, hover over sentiment and you’ll see it comes back as Negative.

echo bot template

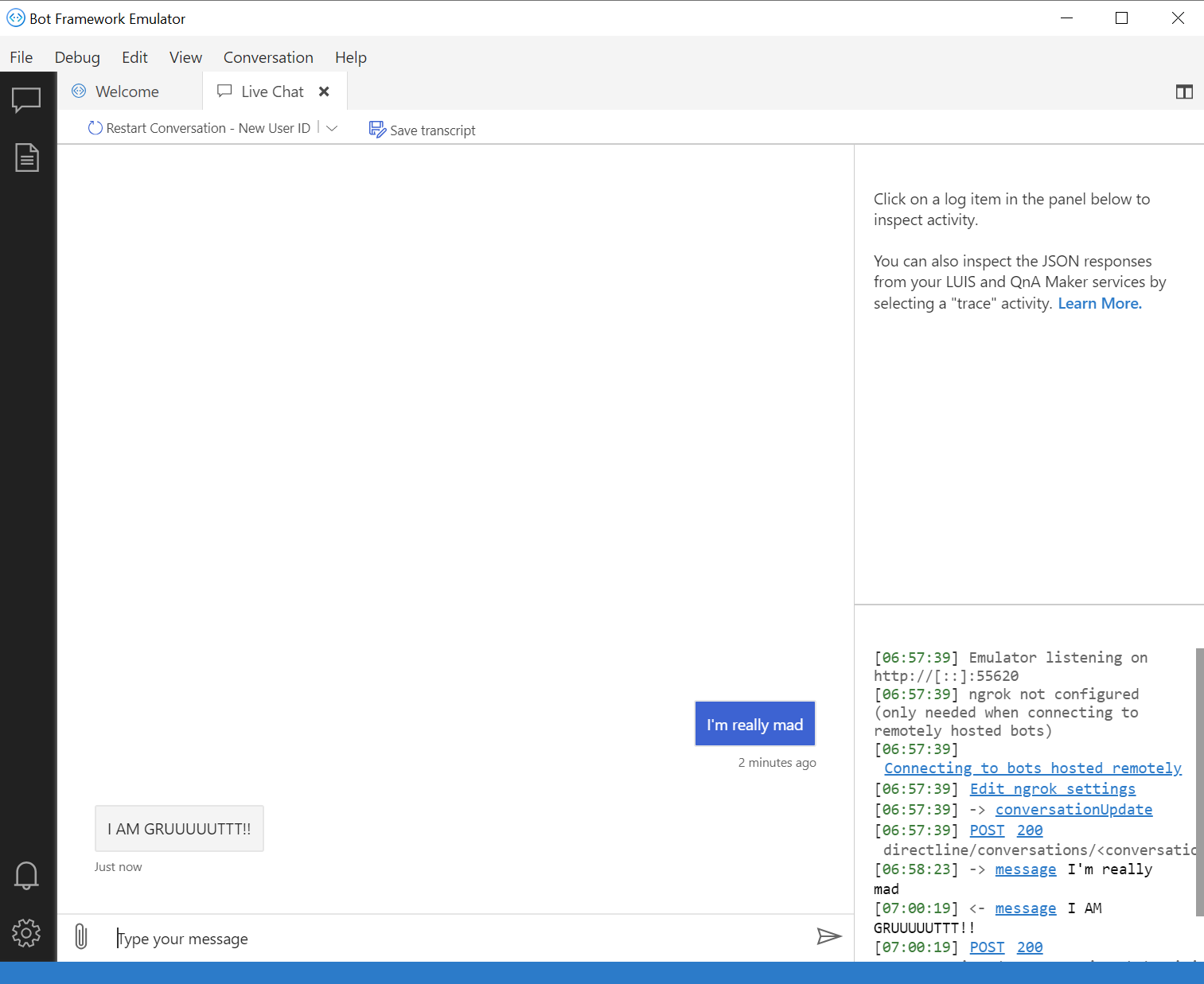

Great! Hit Continue in Visual Studio, go back to the Bot Framework Emulator, and you’ll see that Gruut matches your anger.

echo bot template

Excellent! This is great—however, before we ship an app with hard-coded credentials in the source code, we should probably clean that up. Let’s do that now.

Second pass: working with credentials safely

Clearly, we do not want to hard-code our credentials. Instead, here’s what we’ll do:

  • Store our key and endpoint in the Azure Key Vault
  • In Azure Active Directory, create a new app registration
  • Give this new registration rights to access the Key Vault
  • In our app, use the configuration provider to access key vault using our provided client ID and secret

Of course, there are even more, enterprise-y ways to do it, like managed identities—like everything else, it’s a balance of security and overkill for what we’re doing.

Before we proceed, you’ll need to create a Key Vault or use an existing one. For details on how to create a Key Vault, check out the docs and come back when you’re done. I’ll wait.

Add secrets to Key Vault

From your Key Vault, click Secrets and then Generate/Import to create two secrets: AzureKeyCredential and CognitiveServicesEndpoint I won’t be showing you my setup for security reasons, but it’s pretty straight-forward.

Set up app registration in Azure Active Directory

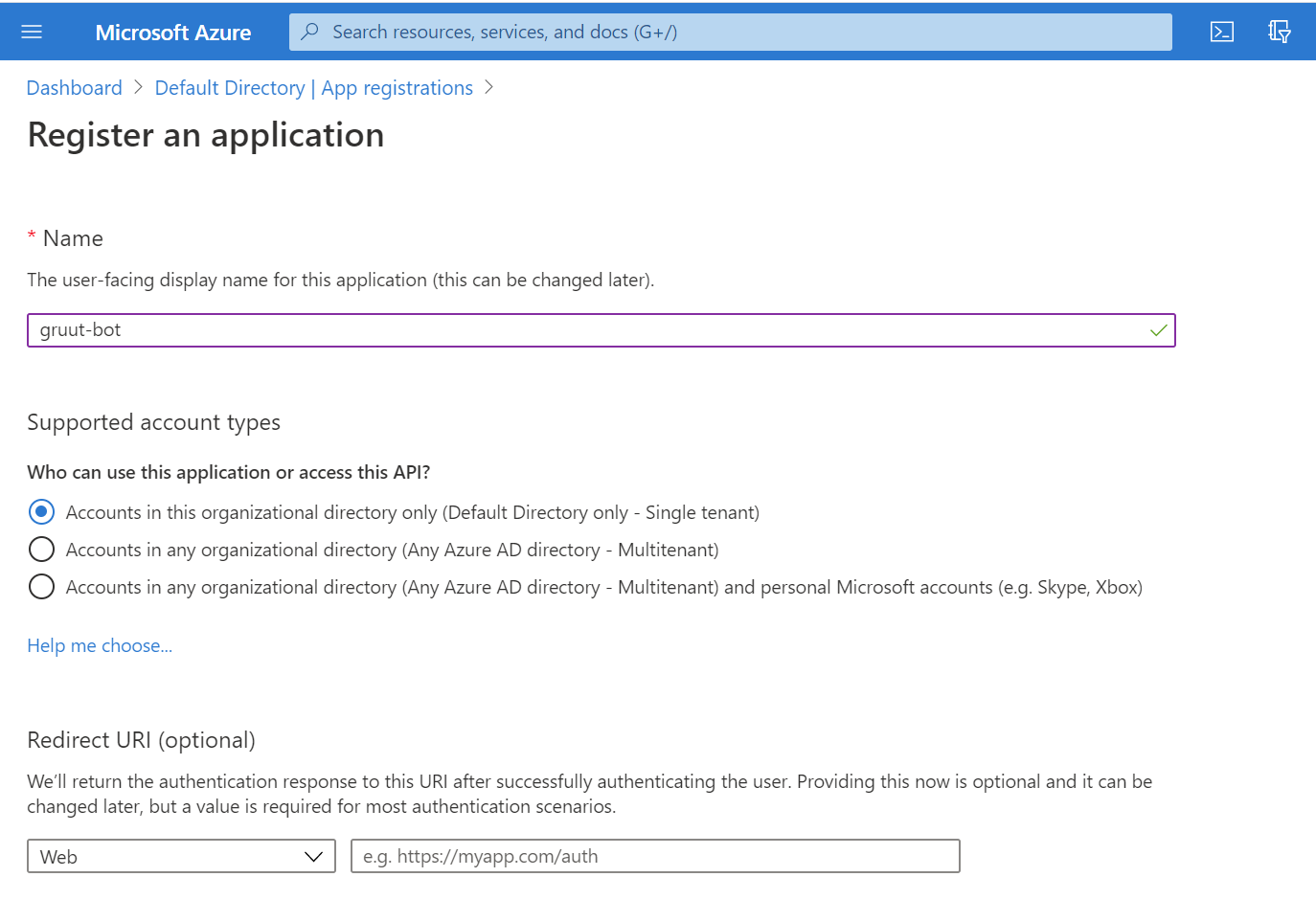

We’re now ready to set up our app registration. Head on over to Azure Active Directory (I just use the search box), and click App Registrations, then New registration. Give your registration the name and accept the default supported account type, then click Register.

echo bot template

Copy the Application (client) ID, as we will need it later.

Create client secret

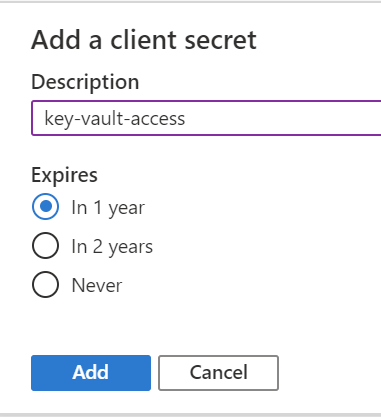

Of course, this registration does nothing by its own, so we’ll need to create a client secret so our app can know about it. While still in the App Registrations section, click Certificates & secrets, then click New client secret.

Enter a name, leave the default expiration policy, and click Add.

echo bot template

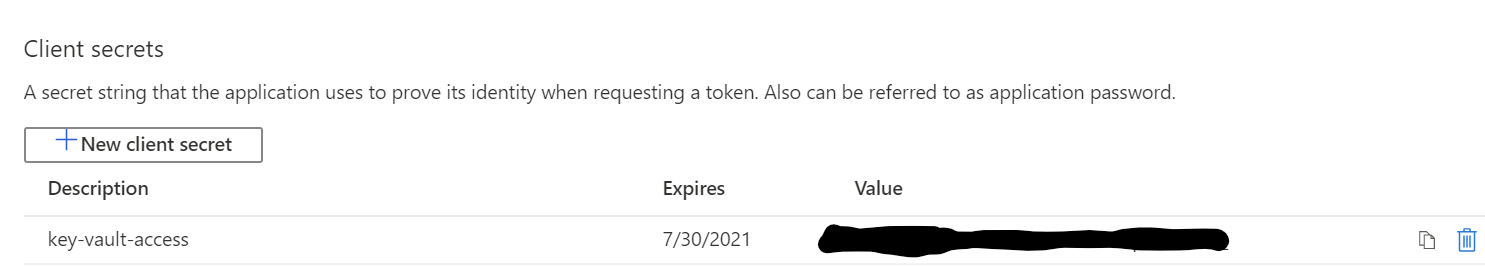

You should see your new client secret. Copy this value somewhere—we will also need it soon.

echo bot template

Give your app rights to the Key Vault

Now, we’re ready to head over to the Key Vault to give our chatbot access to use it via the app registration. Once you get to the Key Vault, click Access policies, then + Add Access Policy.

Accept the defaults other than the following, then click Add:

  • Secret permissions - Get, List
  • Select principal - Select the client secret you used earlier (in my case, gruut-bot)

We’re done with Azure. Now, all we need to do is update our app.

Update your app

In your appsettings.json file, update it to include the name of your key vault (whatever is before .vault.azure.net) and the client ID and secret you just copied.

{
  "KeyVault": {
    "Name": "my-key-vault-name",
    "ClientId": "my-client-id",
    "ClientSecret": "my-client-secret"
  }
}

In your Program.cs file, in CreateHostBuilder, we need to update it to grab the values in question once the app starts.

public static IHostBuilder CreateHostBuilder(string[] args) =>
    Host.CreateDefaultBuilder(args)
        .ConfigureAppConfiguration((context, config) =>
        {
            var builtConfig = config.Build();
            config.AddAzureKeyVault(
                $"https://{builtConfig["KeyVault:Name"]}.vault.azure.net",
                builtConfig["KeyVault:ClientId"],
                builtConfig["KeyVault:ClientSecret"]);
        })
        .ConfigureWebHostDefaults(webBuilder =>
        {
            webBuilder.UseStartup<Startup>();
        });

Now, if you go back to EchoBot.cs, remove the hard-coded strings and replace it with a constructor that references the IConfiguration interface using some dependency injection. This allows us to access our configuration properties.

private readonly IConfiguration _configuration;

public EchoBot(IConfiguration configuration)
{
    _configuration = configuration;
}

Then, all you need to do is change the TextAnalyticsClient parameters to reference your configuration.

var client = new TextAnalyticsClient(
             new Uri(_configuration["CognitiveServicesEndpoint"]),
             new AzureKeyCredential(_configuration["AzureKeyCredential"]));

Run your app again and you’ll see it should be working the same as before—except this time, our Text Analytics credentials are stored away in our Key Vault.

Wrapping up

In this post, we got our feet wet with the Microsoft Bot Framework. We incorporated Azure Cognitive Services to detect the sentiment of a user, and also worked on safeguarding our credentials using the Azure Key Vault and Azure Active Directory.

You can access the source code at Shahed’s repo, and PRs/GIFs (or both) are always welcome.
